Roll forming tools for automotive profiles
Roll forming tools designed and simulated in-house for automotive profiles in aluminium and high-strength steels, tried out on the line before shipping.
Flower pattern and roll design
The flower pattern defines how the flat strip becomes the final profile, pass after pass. Our engineers design it in COPRA, then design each set of rolls for the target line and material.
Simulation before machining
Forming is simulated before the rolls are machined: strain, edge waves, twist and springback. Changes are made in the design, not on the line.
Materials and profiles
We design tools for aluminium alloys and high-strength steels, for open and closed profiles, with in-line punching and cut-off when needed.

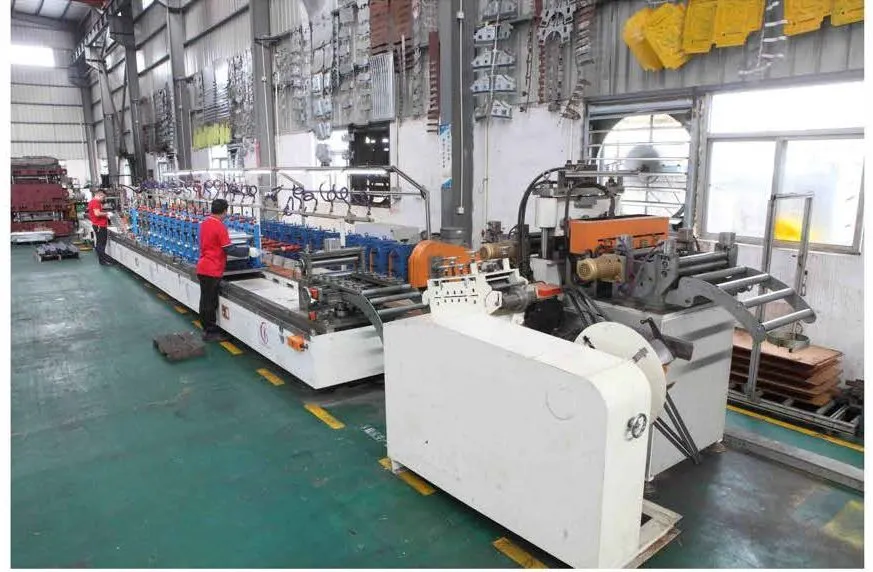

Tried out on the line
Tools are tried out on a line before shipping and the first profiles are measured. They can be supplied for your existing line or with one of our turnkey lines.
Frequently asked questions
Can you build tools for our existing line?
Yes. Send us the profile drawing and your line data: we design the tools for your stands.
Which software do you use?
COPRA for roll design, with CAD in UG NX and CATIA.
A project in mind?
Dies, a turnkey line or series production: tell us about your project and we will get back to you.
